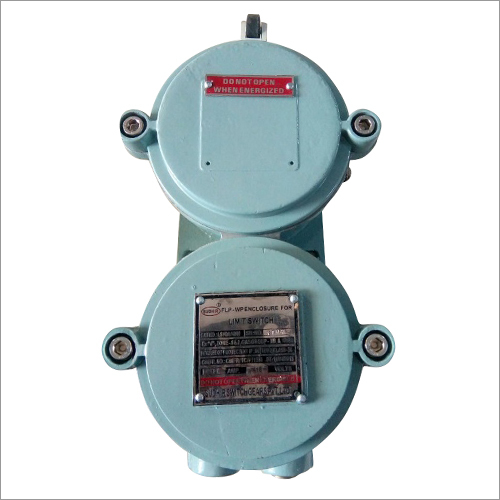

Flameproof Top Push Roller Limit Switch Direct Entry

Flameproof Top Push Roller Limit Switch Direct Entry Specification

Surface Treatment
Other

Sealed
Flameproof & Weatherproof

Thickness
5 mm Millimeter (mm)

Application
Other

Cable Diameter
Up to 20 mm Millimeter (mm)

Product Type
Other

Power Rating
AS PER REQUIREMENT

Contact Resistance
Less than 50 m Kiloohm (k)

Insulation Resistance
500 M at 500V DC

Diameter
Body Diameter 58 mm Millimeter (mm)

Terminal Socket
Brass Screwed Terminals

Style
Top Push Roller

Fittings
Direct Entry

Rated Voltage
240V AC / 250V DC Ampere (A)

Usage & Applications
INDUSTRIAL

Operating Temperature
AS PER REQUIREMENT Fahrenheit (oF)

Weight
Approx 780 g GSM (gm/2)

Cable Type
AS PER REQUIREMENT

Color
Other

Display Type
AS PER REQUIREMENT

Warranty
1 YEAR

Phase
1

Rated Current
AS PER REQUIREMENT Teraampere (TA)

Features
AS PER REQUIREMENT

Frequency
AS PER REQUIREMENT Milihertz

Conductor
AS PER REQUIREMENT

Material
AS PER REQUIREMENT

Operating Force
3.5 kgf max

Mounting
2 Holes for Surface Mounting

Contact Configuration
1NO + 1NC

Degree of Protection
IP66

Standards
Conforms to IS/IEC 60947-5-1

Mechanical Life
1 Million Operations Min

Temperature Range
-20°C to +60°C

Explosion Protection
Ex d IIA & IIB as per IS/IEC: 60079-1:2007

Actuator Type
Top Actuating with Roller

Cable Entry Thread
3/4" ET / 1/2" NPT

Flameproof Top Push Roller Limit Switch Direct Entry Trade Information

Minimum Order Quantity
1000 Pieces

FOB Port
Vadodara, Gujarat

Payment Terms
Cash in Advance (CID), Cheque

Supply Ability
1000 Pieces Per Month

Delivery Time
3 Days

Sample Available
Yes

Packaging Details
AS PER REQUIREMENT

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
AS PER REQUIREMENT

About Flameproof Top Push Roller Limit Switch Direct Entry

Invest in our rendered top quality flameproof top push roller limit switch direct entry which is an electromechanical device. It works by a physical force that is applied via another object. The said product is eminent in detecting absence as well as presence of various components. In addition to this, the said product is employed for regulating the electrical circuit which is used for controlling the moving parts of a machine. Flameproof top push roller limit switch direct entry allows the circuits to slow down, stop, start and accelerate the operations of motor. It is acquired for its high performance efficiency and resistance from shock, corrosion & other damages.

A Flameproof Top Push Roller Limit Switch Direct Entry Type is a rugged, explosion-proof electrical switch designed to detect and control the position or movement of machinery in hazardous environments. It features a top-mounted roller plunger actuator and direct cable entry, ensuring safe and reliable operation in areas with flammable gases or vapors.

Key Features

Flameproof / Explosion-proof Enclosure (Ex d)
Prevents ignition of surrounding hazardous atmosphere by containing internal sparks.
Top Push Roller Actuator
Enables precise detection of linear or reciprocating motion.
Direct Cable Entry Design
Simplifies wiring and reduces the need for additional cable glands.
Heavy-duty Construction
Made from cast aluminum alloy or cast iron with corrosion-resistant coating.
High Mechanical Strength
Suitable for harsh industrial environments and frequent operation.
Weatherproof & Dustproof
Typically rated IP65 / IP66 for outdoor use.
Reliable Switching Mechanism
Ensures accurate and repeatable operation.

Technical Specifications (Typical)

Contact Configuration: 1NO + 1NC / 2NO + 2NC
Voltage Rating: Up to 415V AC / 250V DC
Current Rating: 5A 10A
Protection Type: Ex d
Gas Group: IIA, IIB, IIC
Temperature Class: T6
Cable Entry: Direct Entry (M20 / M25 / NPT)
Material: Cast Aluminum / Cast Iron
Ingress Protection: IP65 / IP66
Mounting: Surface / Wall mounting
Operating Temperature: -20C to +55C

Applications

Used in hazardous and industrial areas where position sensing is critical:

Oil & Gas Industries
Petrochemical Plants
Chemical Processing Units
Conveyor Systems
Material Handling Equipment
Offshore Platforms

Safety Standards

Complies with ATEX / IECEx certifications
Conforms to IS/IEC 60079 standards
Suitable for Zone 1 & Zone 2 hazardous areas

Advantages

Safe operation in explosive atmospheres
Accurate position sensing and control
Durable and long-lasting performance
Easy installation with direct entry design
Low maintenance

Superior Flameproof and Weatherproof Protection

The switch is engineered to excel in hazardous industrial environments, offering flameproof and weatherproof sealing as per IS/IEC 60079-1:2007 and IP66 standards. This ensures optimal safety while maintaining reliable mechanical performance, enabling uninterrupted operation across challenging conditions, including exposure to dust, moisture, and flammable gases.

Versatile Mounting and Direct Entry Connection

Installation is simplified with two surface mounting holes and direct entry fittings. Multiple cable entry thread options-3/4" ET or 1/2" NPT-accommodate diverse wiring requirements, while the terminal sockets with brass screwed terminals ensure secure and easy connectivity. Its robust cast aluminium alloy body further ensures longevity and safe mounting in industrial settings.

FAQ's of Flameproof Top Push Roller Limit Switch Direct Entry:

Q: How can the Flameproof Top Push Roller Limit Switch be installed in industrial environments?

A: The switch is designed for surface mounting using two pre-drilled holes, making it easy to fix securely onto machinery or control panels. Direct entry cable fittings and multiple thread options (3/4" ET or 1/2" NPT) provide flexible wiring solutions, simplifying integration into existing setups.

Q: What standards of explosion protection does this limit switch conform to?

A: This limit switch offers explosion protection according to Ex d IIA & IIB classifications as per IS/IEC 60079-1:2007. It is suitable for use in hazardous areas containing flammable gases, providing peace of mind for industrial safety compliance.

Q: When should this flameproof limit switch be used in industrial automation?

A: It is recommended for applications requiring high operational reliability and safety, particularly where flammable gases or adverse weather conditions may affect equipment performance. Its robust design and mechanical life of at least 1 million operations make it ideal for continuous operation in machinery and automation systems.

Q: Where is this switch commonly found in practice?

A: This product is widely used in industrial plants, manufacturing facilities, and automated machinery settings within India where explosion-resistant equipment is mandated. Dealers, distributors, suppliers, traders, and wholesalers cater to various sector needs ensuring broad availability.

Q: What benefits does the top actuating roller provide?

A: The top push roller actuator allows smooth, accurate triggering with a maximum operating force of 3.5 kgf. It supports reliable contact configuration (1NO + 1NC), making it suited for precise position sensing, control tasks, and safety interlocks in complex machinery.

Q: How does the switch ensure electrical and mechanical durability?

A: Constructed from cast aluminium alloy and coated with epoxy powder, the switch achieves superior durability against corrosion, impact, and environmental factors. It is rated for high insulation resistance (500 M at 500V DC) and low contact resistance (less than 50 m), complemented by a mechanical life exceeding 1 million operations.
